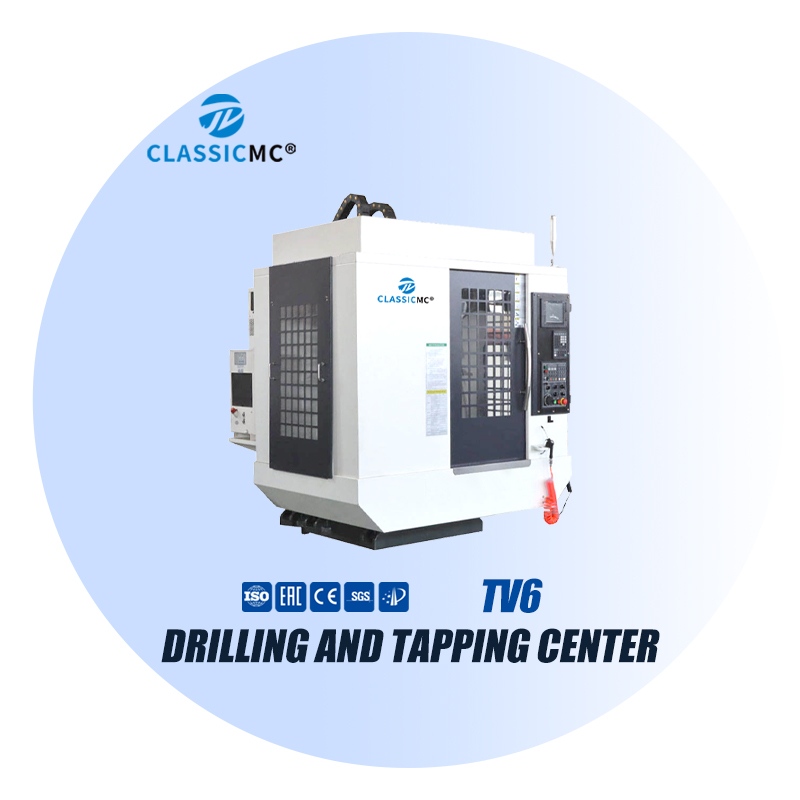

TV6

Name: TV6 - Classic CNC Machine
Price: 25000.00 USD
Availability: InStock

Product Application

the foundation, column, main spindle box, cross sliding table, worktable and other parts were designed with high strength casting technology. the inner metallographic structure is very steady. the casting parts show rational geometry composition through machine tool kinetics and finite element analysis. the basic parts have high steel nature by collocating with the reinforcing rib.with the wide foundation, box-shaped cavity column, broaden & lengthening sliding base and advanced design of mechanics of materials, the weight capacity can be ensured.

Size of Worktable	700 x 420 mm
Travel of X, Y, Z Axis	600 x 400 x 350 mm
Distance from spindle to worktable	135 – 635 mm
T slot(number-width-pitch)	314125mm
Distance from the center of the spindle to the column	420mm
Speed of Spindle	15000/2000/2500rpm
Spindle forms	Direct-type
Range of cutting feed speed	5-15000
Position Accuracy (X/Y/Z Axis)	0.005 / 300mm
Re-position Accuracy (X/Y/Z Axis)	0.003/300 mm
Tool Magazine	21T Disk Type
Maximum tool length	250mm
Maximum tool weight	3kg
Tool change time	1.6sec
Required pressure	0.015m³/min
Spindle	5.5 Kw 16T Disk Type Tool Changer
Max. Workpiece Weight	300 Kg
Total Power	18 Kw
Size of Machine	2300 x 2200 x 2200 mm
Machine Weight	2100/2500 Kg
Power Supply	380V / 50Hz
CNC Controller	Mitsubishi m80
Guide and Ball Screw	Linear guides, C3 high precision level ball screws

Weight	2500 kg
Dimensions	230 × 220 × 220 cm
