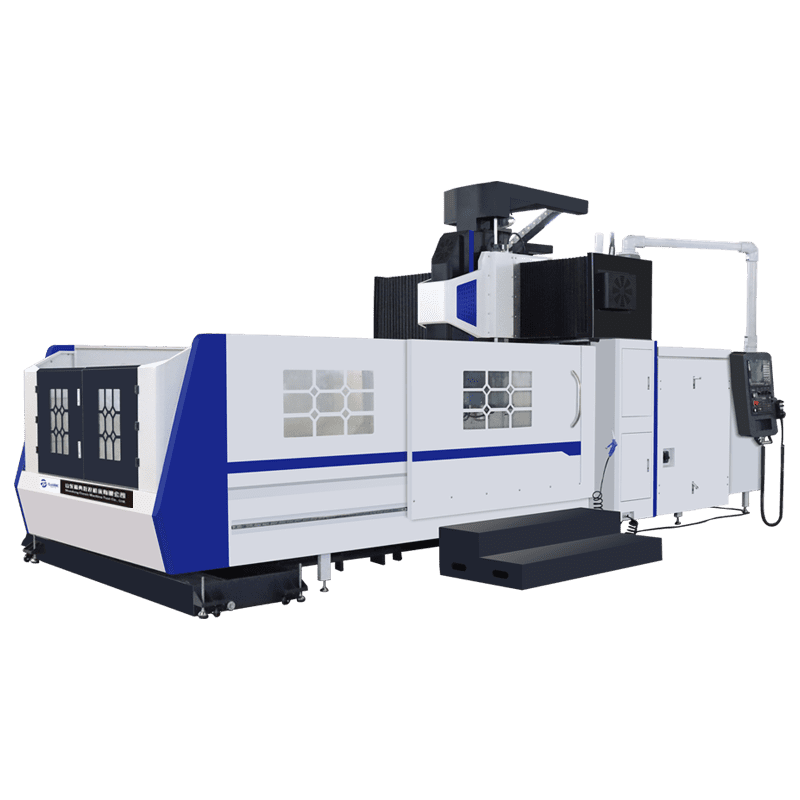

| Name | GMB2016 | Unit | |
| Workbench | working desk size | 2200*1300 | mm |
| Workbench load-bearing | 3000 | Kg | |
| T-slot width | 7*18*165 | mm | |
| Processing range | X-axis travel | 2000 | mm |
| Y axis travel | 1600 | mm | |
| Z-axis travel | 700 | mm | |
| Distance from spindle end face to worktable | 120-820 | mm | |
| The gantry is too wide | 1350 | mm | |
| The gantry is too high | 1012 | mm | |
| working desk | 1700*1000 | mm | |
| spindle | Taper hole model | BBT40 | |
| Pull nail specifications | P40T-1-MAS403(45°) | ||
| range of rotation | 50-8000 | rpm | |
| Feed | Cutting feed speed range | 7 | m/min |
| X-axis rapid movement | 15 | m/min | |
| Y axis rapid movement | 15 | m/min | |
| Z-axis rapid movement | 10 | m/min | |
| motor | X-axis motor | 35 | Nm |
| Y-axis motor | 28 | Nm | |
| Z-axis motor | 28 | Nm | |
| Spindle motor | 15 | Kw | |
| Host dimensions | 5300*3400*2800 | mm | |
| Host weight | 12.5 | T | |
